Build instructions

Development #

This document explains how to set up the development environment for NebulaStream. We distribute a development container image to enable anyone interested hacking on the system as quickly as possible. Additionally, for long-term developers or developers disliking developing in a containerized environment, this document explains how to set up and build NebulaStream in a non-containerized environment.

Development Container #

The recent (based on the main branch) development image can be pulled from

docker pull nebulastream/nes-development:latest

However, it is recommended to build a local development image, because it also installs the current user into the docker container, which prevents permission issues. Building a local image will fall back to a pre-built development image which matches the current set of dependencies (based on a hash). If you are using docker in rootless mode the user inside the container will be root.

If no development image matches the current dependency hash, you can build the development environment locally (using the -l flag). If you want to use libstdc++ instead of the default libc++, you can use the --libstdcxx flag.

./scripts/install-local-docker-environment.sh

Note: All commands need to be run from the root of the git repository!

The image contains an LLVM-based toolchain (with libc++), a recent CMake version, the mold linker and a pre-built development sdk based on the vcpkg manifest.

This container image can be integrated into, e.g., CLion via a docker-based toolchain or used via the command line.

To configure the cmake build into a build-docker directory, you have to mount the current working directory pwd into the container. Additional cmake flags can be appended to the command.

docker run \
    --workdir $(pwd) \
    -v $(pwd):$(pwd) \
    nebulastream/nes-development:local \
    cmake -B build-docker

The command to execute the build also requires, the current directory to be mounted into the container.

docker run \
    --workdir $(pwd) \
    -v $(pwd):$(pwd) \
    nebulastream/nes-development:local \
    cmake --build build-docker -j

To run all tests you have to run ctest inside the docker container. The ‘-j’ flag will run all tests in parallel. We refer to the ctest guide for further instruction.

docker run \
    --workdir $(pwd) \
    -v $(pwd):$(pwd) \
     nebulastream/nes-development:local \
     ctest --test-dir build-docker -j

Modifying dependencies #

When using the docker images, it is not straightforward to edit the dependencies, as a new docker image would need to be created. Currently, the simplest solution is to create a pull request which would run the docker build on the nebulastream CI and provide a branch specific version of the development image. The development image with changed dependencies is available via:

docker pull nebulastream/nes-development:branch-name

Dependencies via VCPKG #

The development container has an environment variable NES_PREBUILT_VCPKG_ROOT, which, once detected by the CMake build system, will configure the correct toolchain to use.

Since the development environment only provides a pre-built set of dependencies, changing the dependencies in the containerized mode is impossible. If desired, a new development image can be built locally or via the CI.

CCache #

If you want to use CCache, you need to mount your host machines' CCache directory (ccache -p) into the docker containers CCache directory.

docker run \
    --workdir $(pwd) \
    -v $(pwd):$(pwd) \
    -v $(ccache -k cache_dir):$(ccache -k cache_dir) \
    -e CCACHE_DIR=$(ccache -k cache_dir) \
    nebulastream/nes-development:local \
    cmake -B build-docker

CLion Integration #

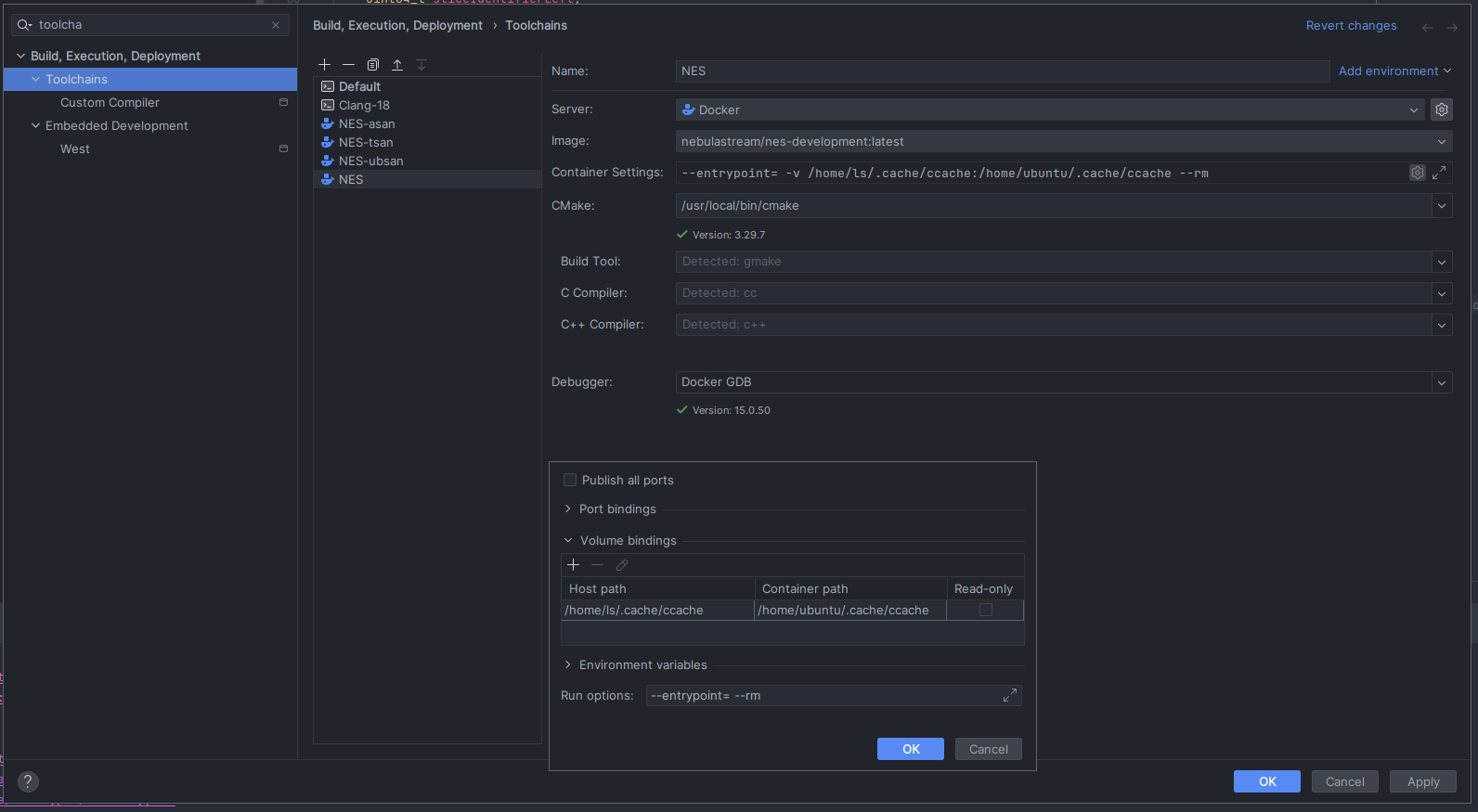

To integrate the container-based development environment you need to create a new docker-based toolchain. With the following settings:

This configuration assumes ccache is using the default directory of $HOME/.cache/ccache. You can create additional docker-based toolchains if you plan to experiment with different sanitizer.

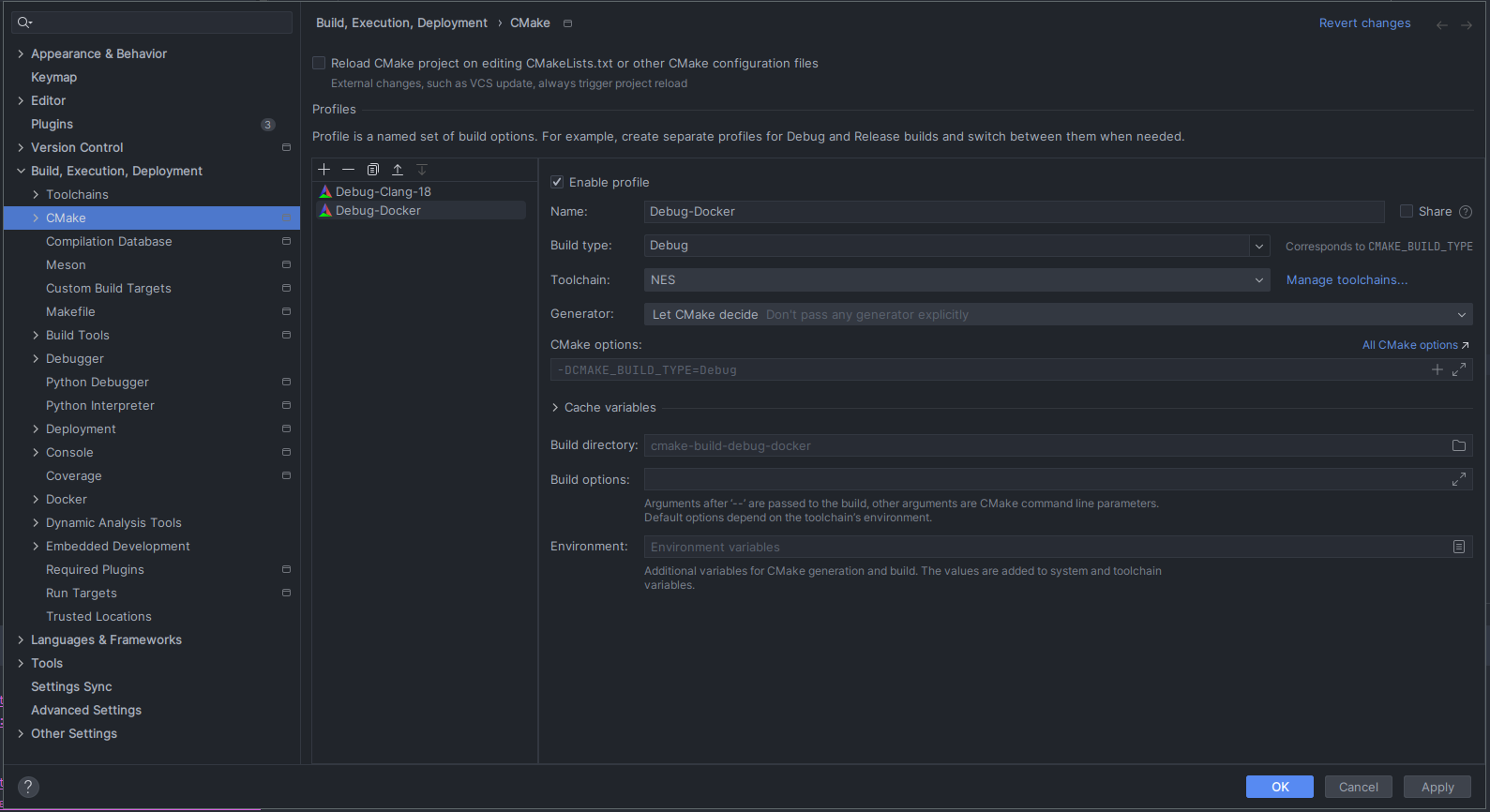

Lastly, you need to create a new CMake profile which uses the newly created docker-based toolchain:

Non-Container Development Environment #

The relevant CI Jobs will be executed in the development container. This means in order to reproduce CI results, it is essential to replicate the development environment built into the base docker image. Note that NebulaStream uses llvm for its query compilation, which will take a while to build locally. You can follow the instructions of the instructions of the base.dockerfile to replicate on Ubuntu or Debian systems.

The compiler toolchain is based on llvm-19 and libc++-19, and we use the mold linker for its better performance. Follow the llvm documentation to install a recent toolchain via your package manager.

Local VCPKG with DCMAKE_TOOLCHAIN_FILE #

A local vcpkg repository should be created, which could be shared between different projects. To instruct the CMake build to use a local vcpkg repository, pass the vcpkg CMake toolchain file to the CMake configuration command.

cmake -B build -DCMAKE_TOOLCHAIN_FILE=/home/user/vcpkg/scripts/buildsystems/vcpkg.cmake

The first time building NebulaStream, VCPKG will build all dependencies specified in the vcpkg/vcpkg.json manifest, subsequent builds can rely on the VCPKGs internal caching mechanisms even if you delete the build folder.

To set the CMake configuration via CLion you have to add them to your CMake profile which can be found in the CMake settings.

Local VCPKG without DCMAKE_TOOLCHAIN_FILE #

If you omit the toolchain file, the CMake system will create a local vcpkg-repository inside the project directory and pursue building the dependencies in there. If you later wish to migrate the vcpkg-repository you can move it elsewhere on your system and specify the -DCMAKE_TOOLCHAIN_FILE flag.

Using a local installation of MLIR #

Building LLVM and MLIR locally can be both time and disk-space consuming. The cmake option -DUSE_LOCAL_MLIR=ON will remove the vcpkg feature responsible for building MLIR. Unless the MLIR backend is also disabled via -DNES_ENABLE_EXPERIMENTAL_EXECUTION_MLIR=OFF, CMake expects to be able to locate MLIR somewhere on the system.

The current recommendation is to use the legacy pre-built llvm archive and pass the -DCMAKE_PREFIX_PATH=/path/to/nes-clang-18-ubuntu-22.04-X64/clang

cmake -B build \
-DCMAKE_TOOLCHAIN_FILE=/path/to/vcpkg/scripts/buildsystems/vcpkg.cmake \
-DUSE_LOCAL_MLIR=ON \
-DCMAKE_PREFIX_PATH=/path/to/nes-clang-18-libc++-x64-None/clang

Ensure your locally installed version of MLIR uses the correct standard library and sanitizers. The default build uses libc++ and no sanitizers. Mismatches between the standard library will appear as linker errors during the build, while mismatched sanitizers might cause them not to work or produce false positives.

Standard Libraries #

In its current state, NebulaStream supports both libstdc++ and libc++. Both libraries offer compelling reasons to use one over the other. For local debugging, CLion offers custom type renderers for stl types (e.g., vector and maps). Libc++ frees us from being tied to a hard-to-change libstdc++ distributed with GCC. Additionally, libc++ enables the use of a hardened library version.

Effectively using both libraries makes NebulaStream more robust by enabling tooling for both libraries. This flexibility means we are not locked into a specific standard library, allowing us to take advantage of tools and debugging features for both libstdc++ and libc++. It also reduces the likelihood of encountering undefined behavior or implementation-specific details, which can complicate development and hinder portability. By leveraging both libraries, we improve the potential for porting NebulaStream to smaller embedded IoT devices.

However, using both libraries comes with trade-offs. It limits us to the intersection of the features and behavior supported by both libraries. Additionally, the CI ensures that code compiles and runs successfully with libstdc++ and libc++ to maintain this dual compatibility.

Compiling with Libstdc++ #

By default, NebulaStream attempts to build with libc++ if it is available on the host system (which is the case for all docker images). Using the cmake flag -DUSE_LIBCXX_IF_AVAILABLE=OFF disables the check and fallback to the default standard library on the system.

If you intend to use the docker image with libstdc++ you can get the development image by pulling

docker pull nebulastream/nes-development:latest-libstdcxx
